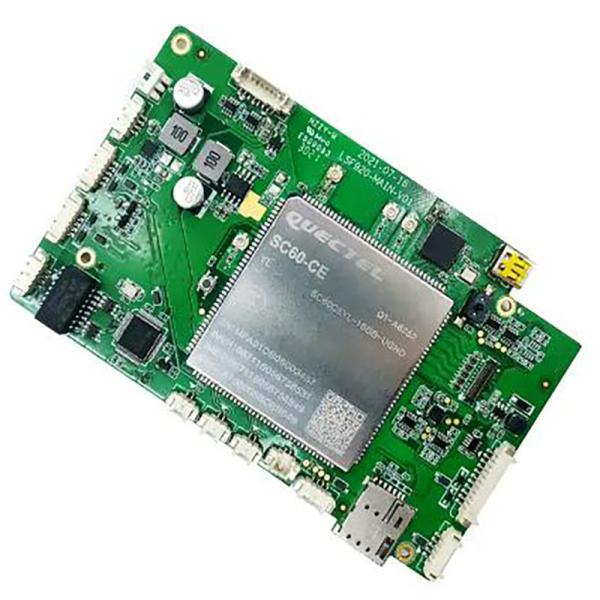

Pcb Bare Board Manufacturing Custom Android Motherboard Industrial Control Board
Configuration instructions
PCB (Printed Circuit Board) manufacturing is the process of producing PCBs, which are used to mechanically support and electrically connect electronic components. PCBs are composed of a non-conductive substrate (usually fiberglass or plastic) with a thin layer of conductive material (usually copper) that is etched to create the circuitry.
| Product name | High-quality PCB boardCustom Android motherboard Industrial control board |
| Disposition | 2G RAM,16GeMMC,4G,wifi,BT,RJ 45 |
| Application Scope | This product is intelligent Android motherboard, suitable for face recognitionterminal, face payment terminal and security |
| Main board size | 68.4*115.0*1.2mmMain |
| board fixing hole | D2.1* 4 |
Product characteristics
Memory :2GB LPDDR3+16GB eMMC(default)4GB LPDDR3+32GB eMMC(optional)4G LTE: Support 3GPP R8 Cat6 and Cat4,VoLTEWLAN:2.4G/5GHz,IEEE802.11a/b/g/n/ac
GNSS GPS/GLONASS/BeiDou个
Display output: maximum support for MIPI-1280X800, LVDS-1920X1080EDP-1920X1080,HDMI-1080P output (Main panel LVDS signal output, Slavepanel is MIPI signal. if required, other interfaces through the transfer board).RTC4
Audio output:1*2W/8R or 2*1.5W/8R
5*USB2.0,1*10/100M RJ45,1RS-232,2*UART(3V3)红Support Android 7/9 system customization, provide system APIlinterface code.perfect customer upper-level APP development4Voltage DC input: DC +12V, rated power <18WOperating temperature: -10°C~+ 45C, humidity: 10%~90%
Why did you choose us?
1. Experienced
Focus on PCBA electronics manufacturing for 8 years
Best partner for listed companies
Serving more than 60 European and American enterprises
Helped customers solve design problems more than 500 times
Help customers solve MP problems more than 800 times.
Help customers improve test reliability by more than 1000 times
2. Quality control
ISO9001:2015 quality management system certification
ISO13485 quality management system certification
IATF16949
LE2
Traceability system
Fully automated FCT testing
3. Quick response
Quick response principle within 1 hour
7 days * 24 hours
Team accountability
Sales staff with bachelor degree or above
